SPECIFICATIONS
-

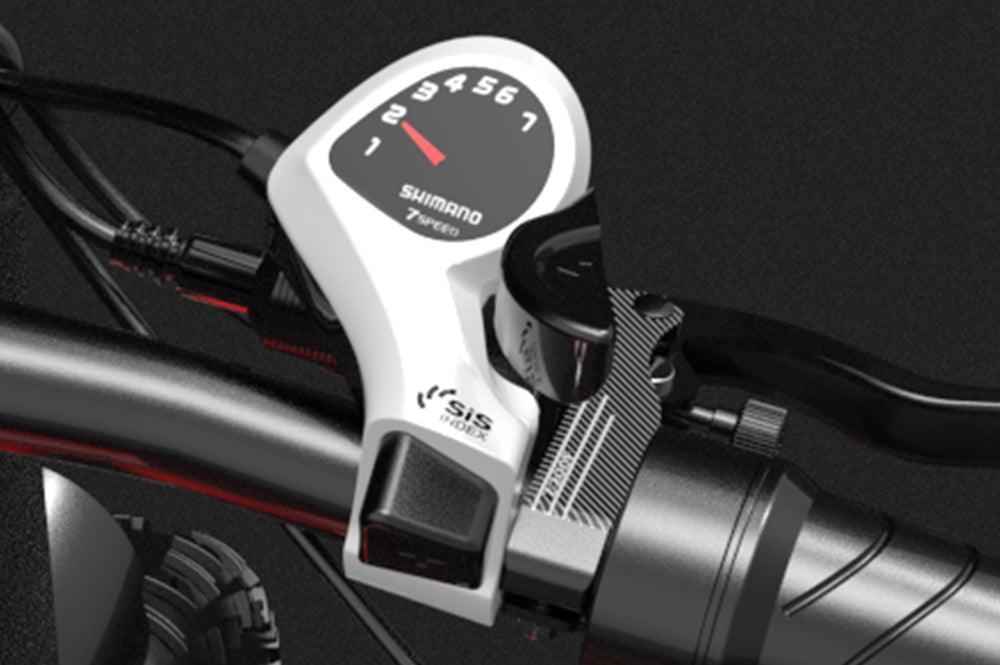

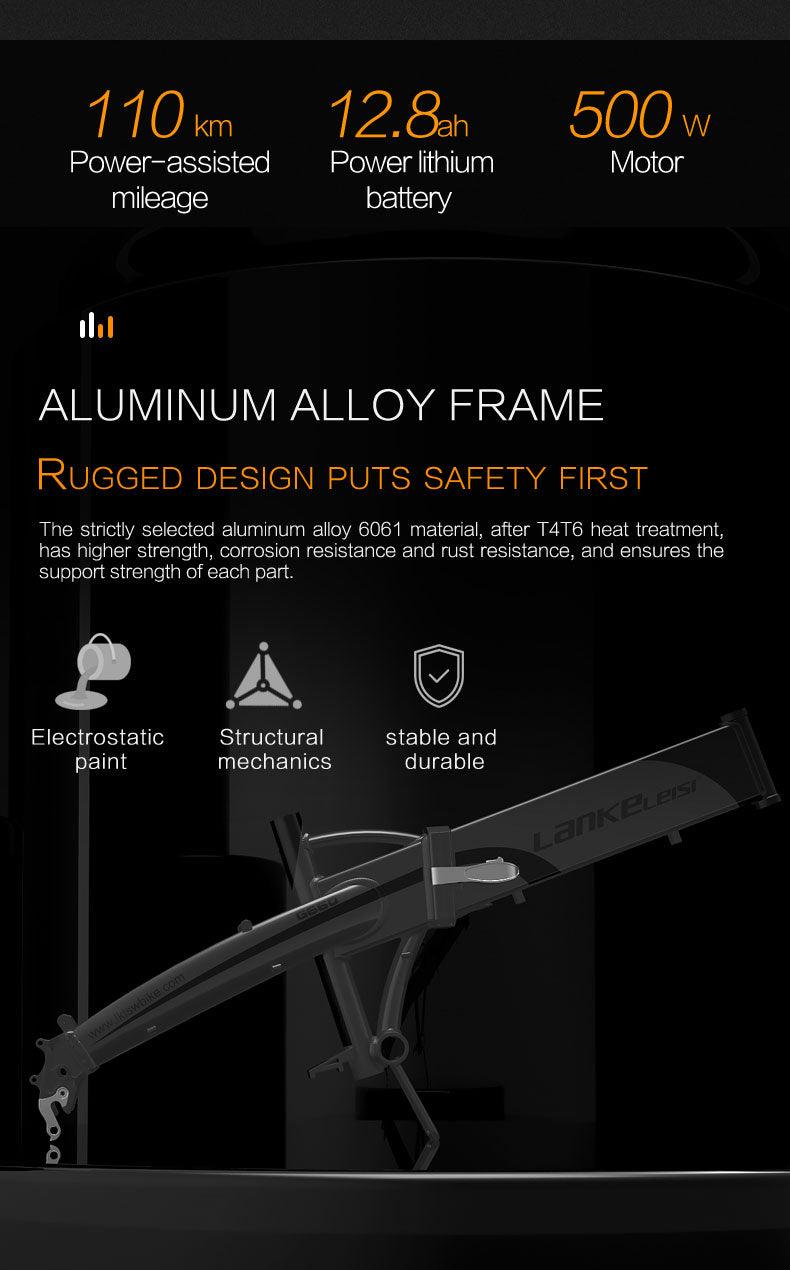

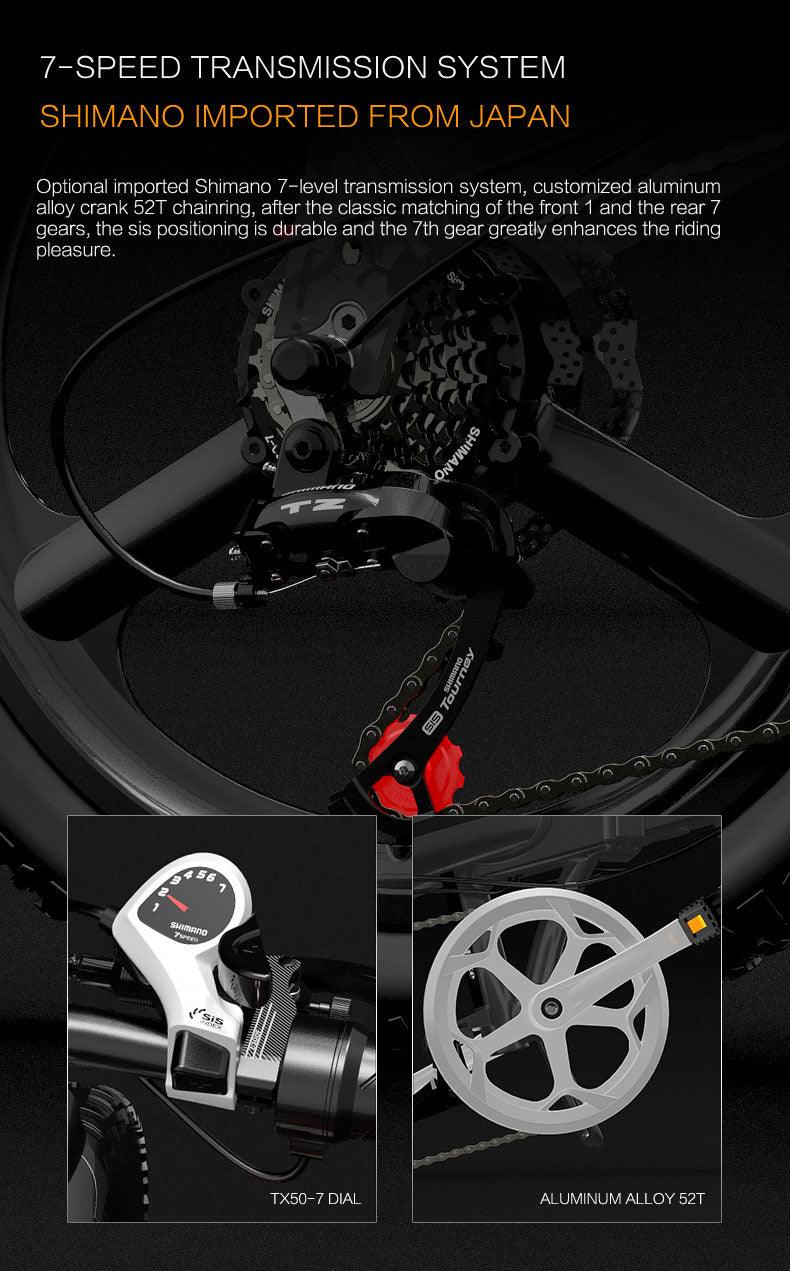

Model G660 Wheel Size 20 inch Frame 6061 aluminum alloy full suspension frame Handelbar Sets 6061 aluminum alloy, 25.4*620mm Fork Aluminum shoulder oil spring suspension fork Variable speed Shimano 7 speed Shifting Lever Shimano TX50 Rear Derailleur Shimano TZ20 Cranksets Prowheel aluminum alloy crank square hole 52T Freewheel Shimano 14-28T Chain KMC 7s Brake DYISLAND De-energized Hydraulic Disc Brakes Rim Magnesium alloy three-blade integrated wheel Tire 20*1.95 Net Weight 24kg Carrying weight 150kg Applicable height 160cm-190cm Mileage Electric mode 45 km/auxiliary mode 110 km

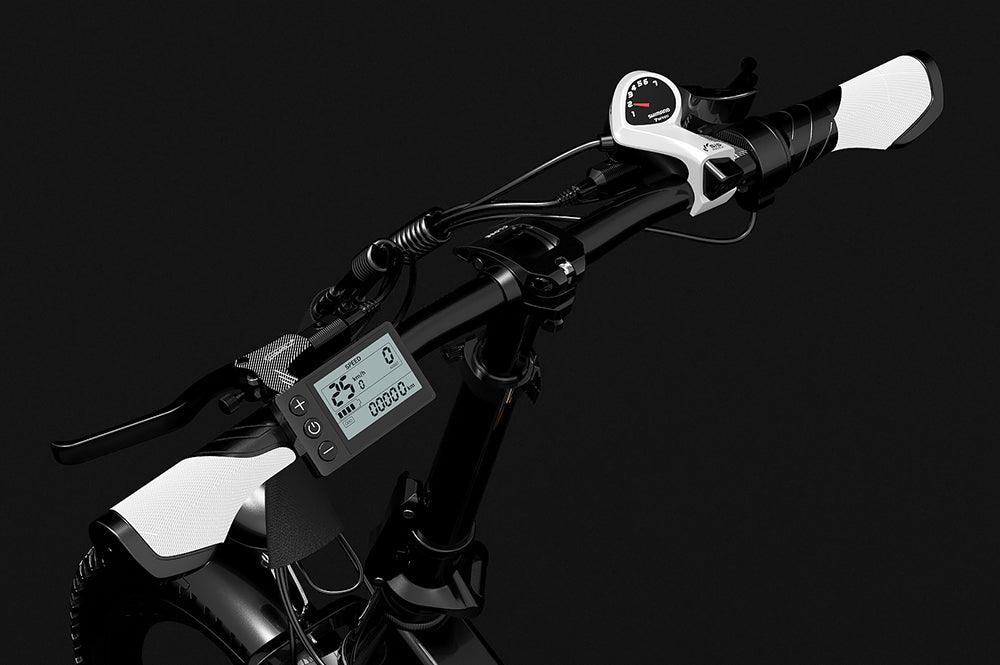

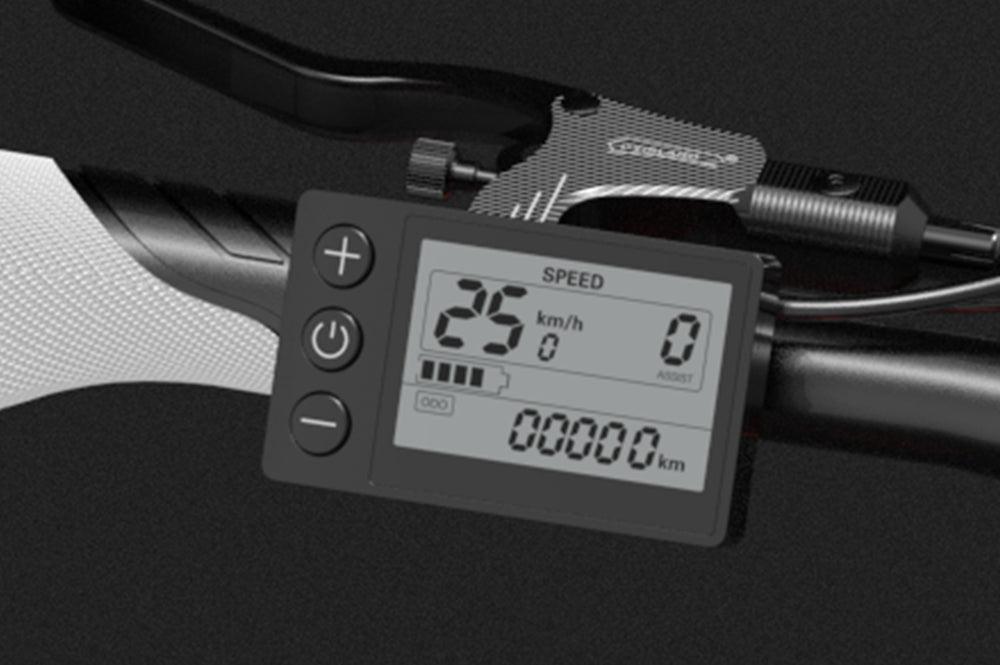

(After being fully charged, the load is 60kg, the temperature is 25 ℃, and the test is conducted at 20km/h. The actual measurement is the average speed on a flat road surface)PAS mode (5 Shifts) Range 110KM Riding mode Pure electric mode Range 45KM Maximum speed 25-35km/h Gradeability 30° Battery 48V 12.8AH Lithium battery Charger 48v 3a charger Charging time 4-5h Motor 48v 500w rear drive brushless motor, waterproof grade IP54 Motor torque 45 Nm Meter S866 LCD meter, Integrated setting function, display speed, battery level, mileage, etc., waterproof level: IP64 Power assist Sensor 12-point Holzer-intensive speed sensor Wire connector All cables are Waterproof Integrated wires
The bike comes with a battery and a charger

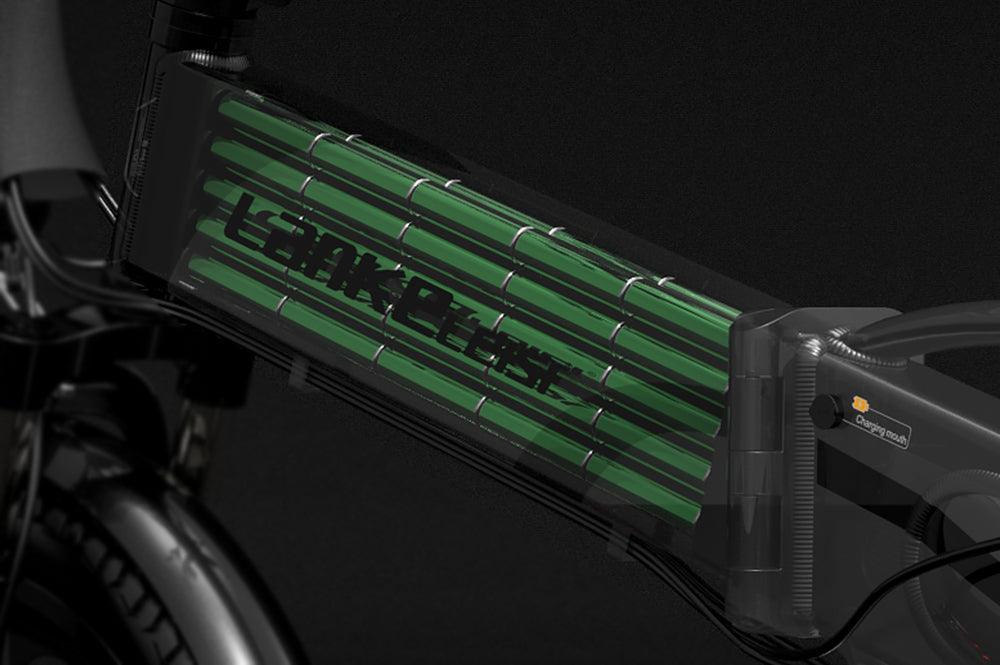

48V 12.8Ah 18650 Lithium Battery
48V12.8Ah power supply 18650 lithium battery pack, built-in frame design IP54 waterproof level, double protection, strong output, always stable. Pure electric can reach 45KM, assisted riding can reach 110KM, providing sufficient power output for riding and free riding.-
Safety
Battery waterproof
Built-in hidden -
Protect
Install lithium battery
Protection board

500W High Speed Brushless Motor
The 48V500w high-speed brushless motor is light in weight. Its internal use of star gear design can amplify torque and improve energy efficiency conversion rate. This is reflected in reducing energy consumption and silent energy consumption while increasing cruising range, improving speed performance and climbing performance.Fast power output.-
Power
500w Motor
35KM
4.9s Up to fullspeedspeed -
Climb
CLIMBING ABILITY
SURGING POWER/30°

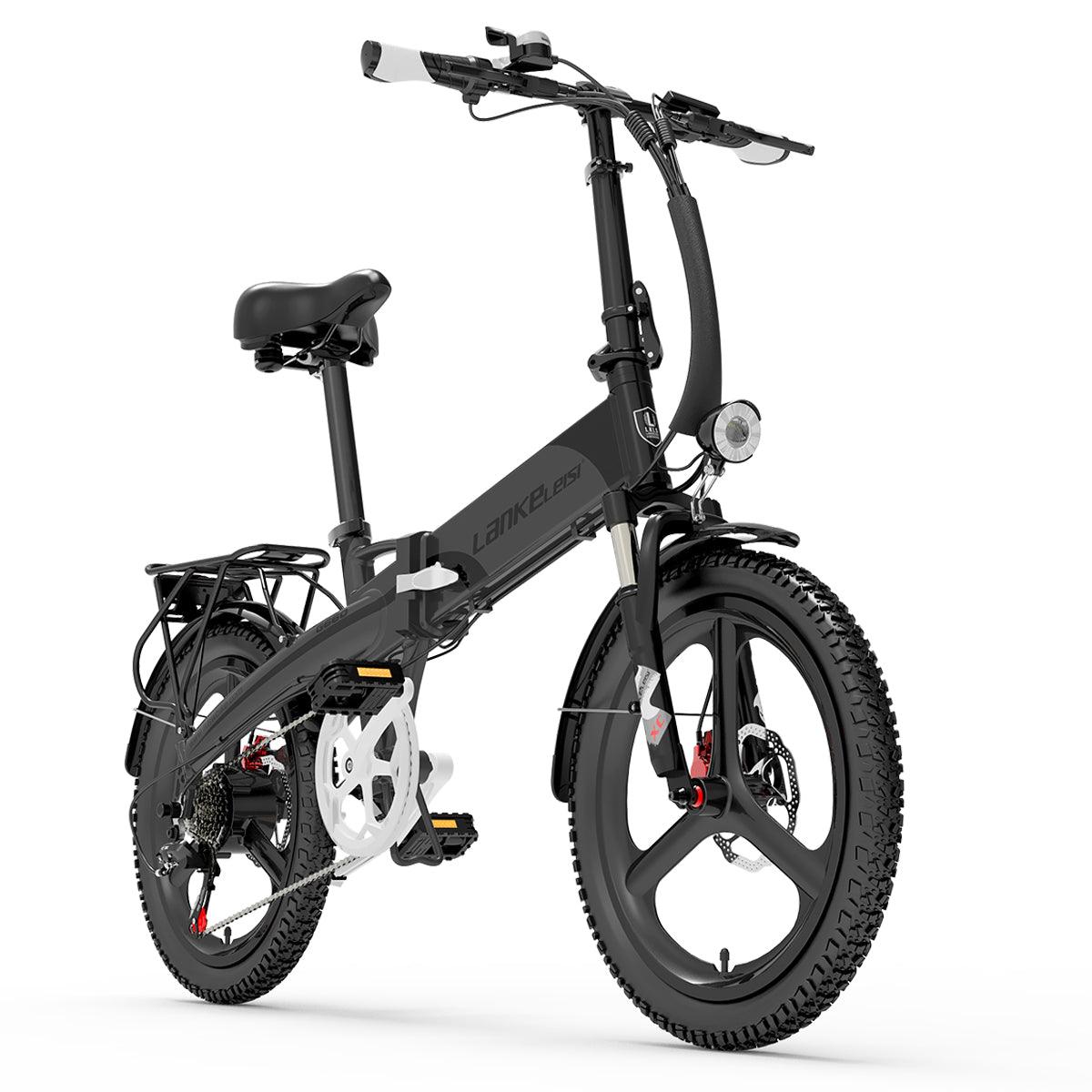

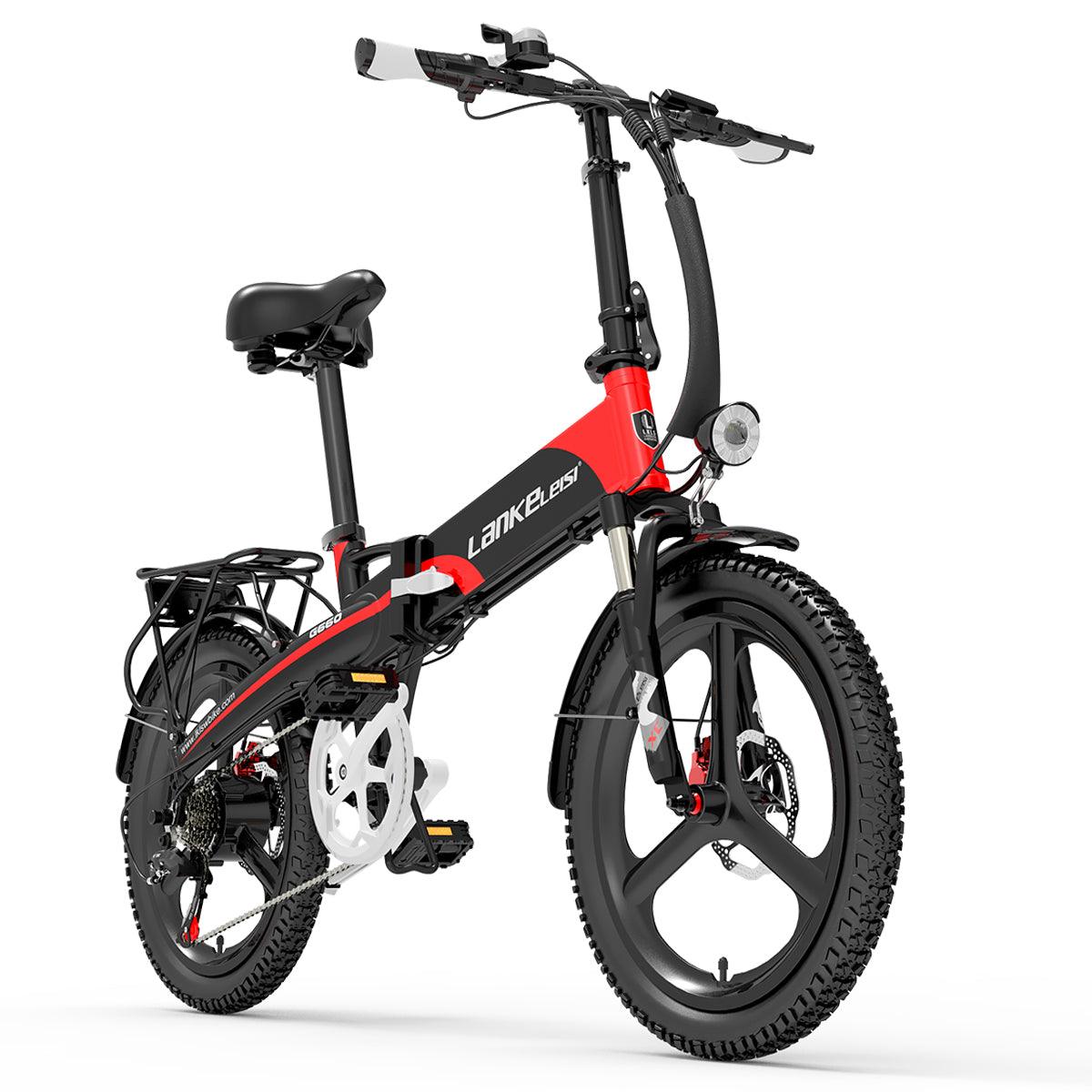

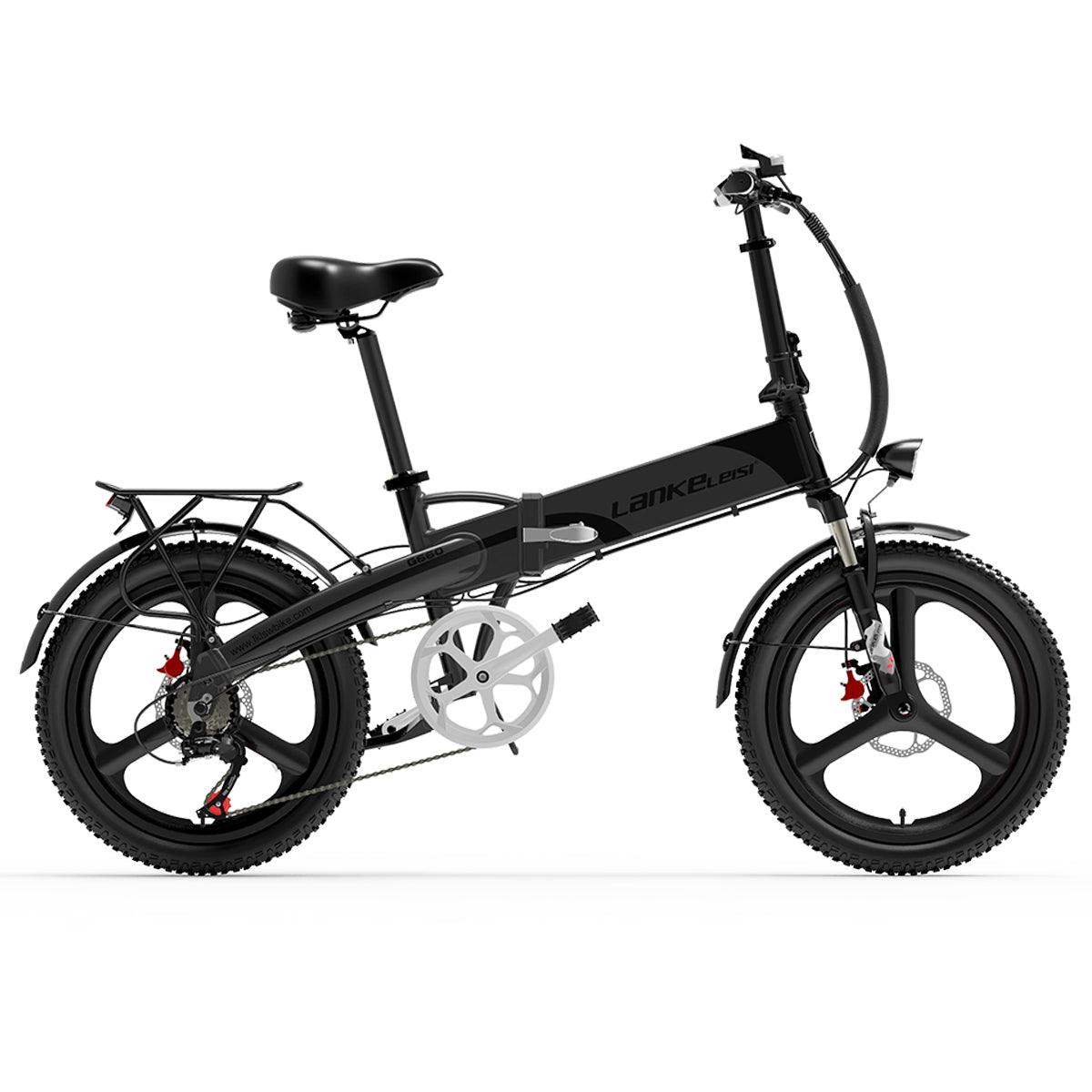

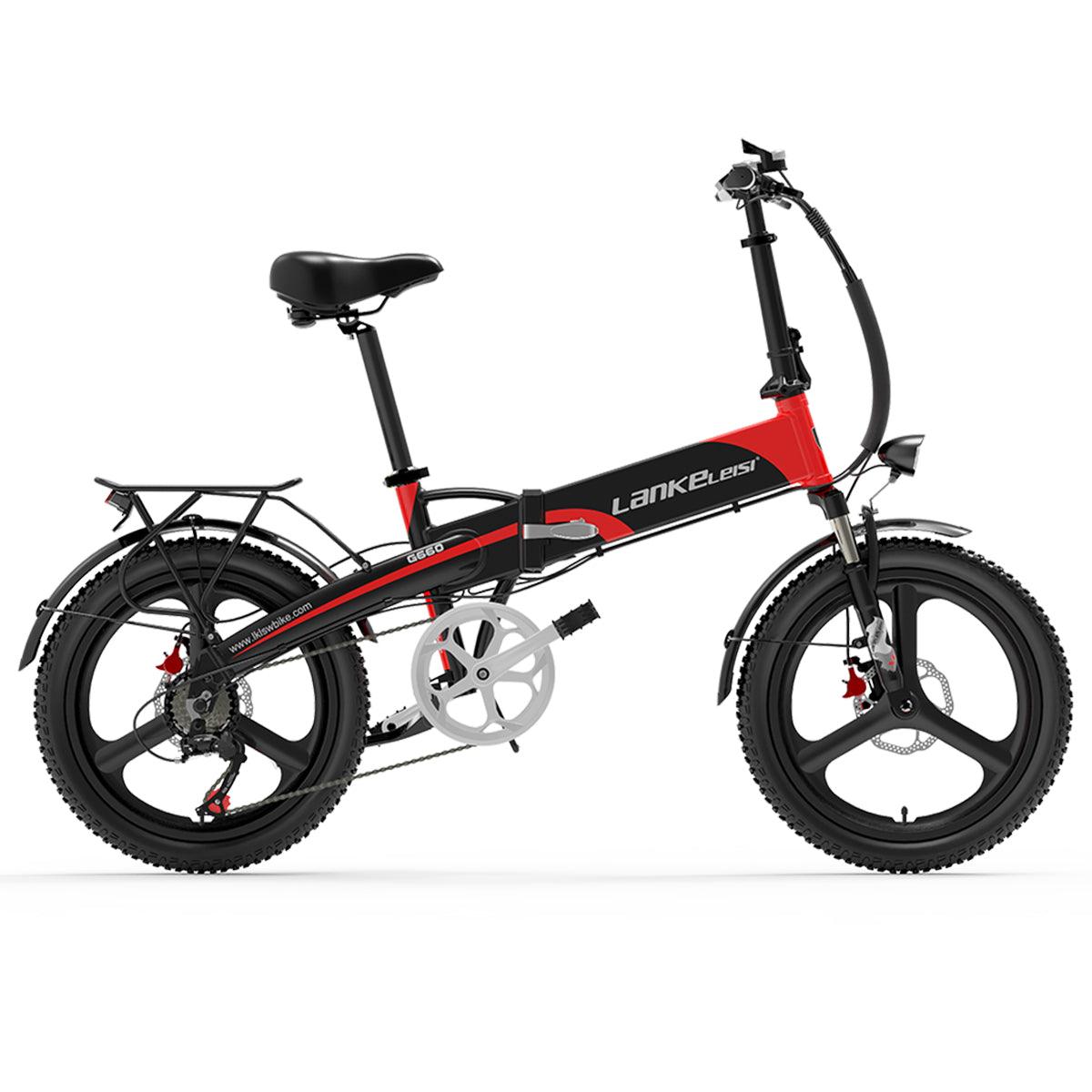

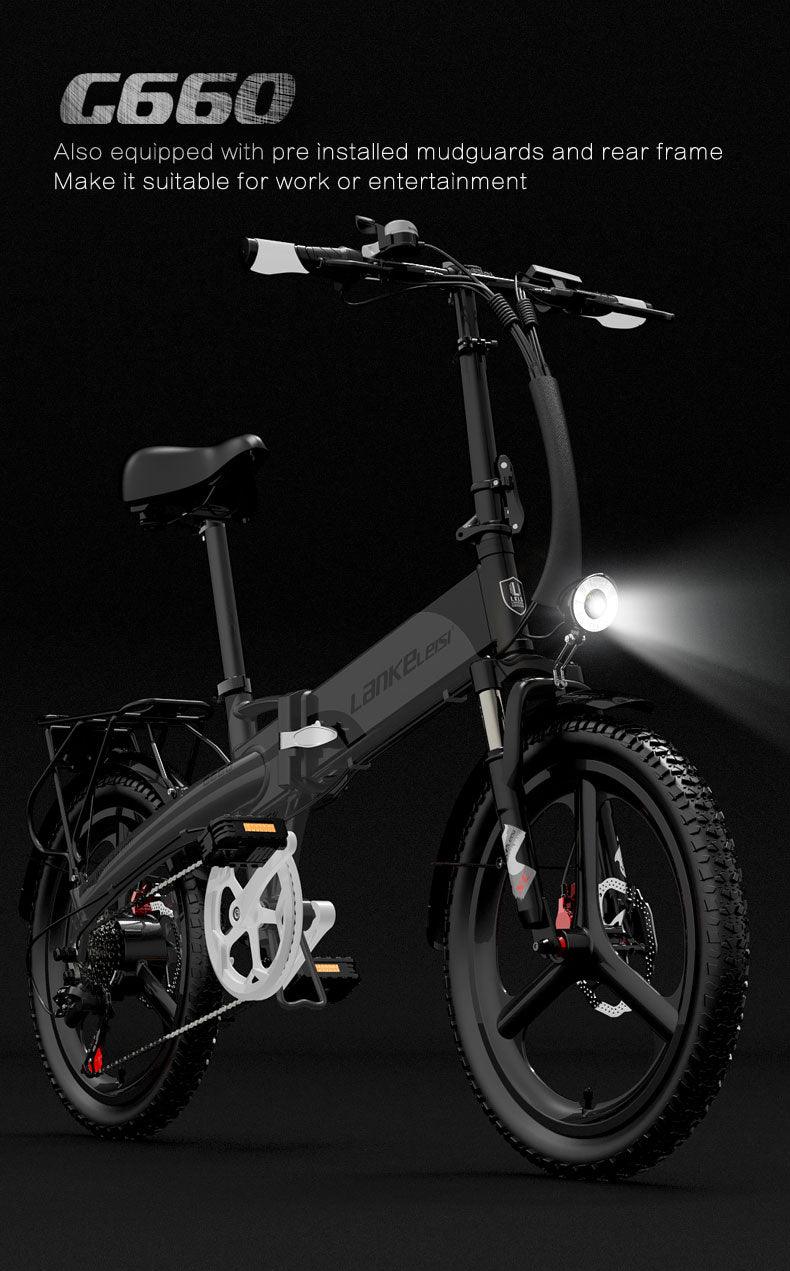

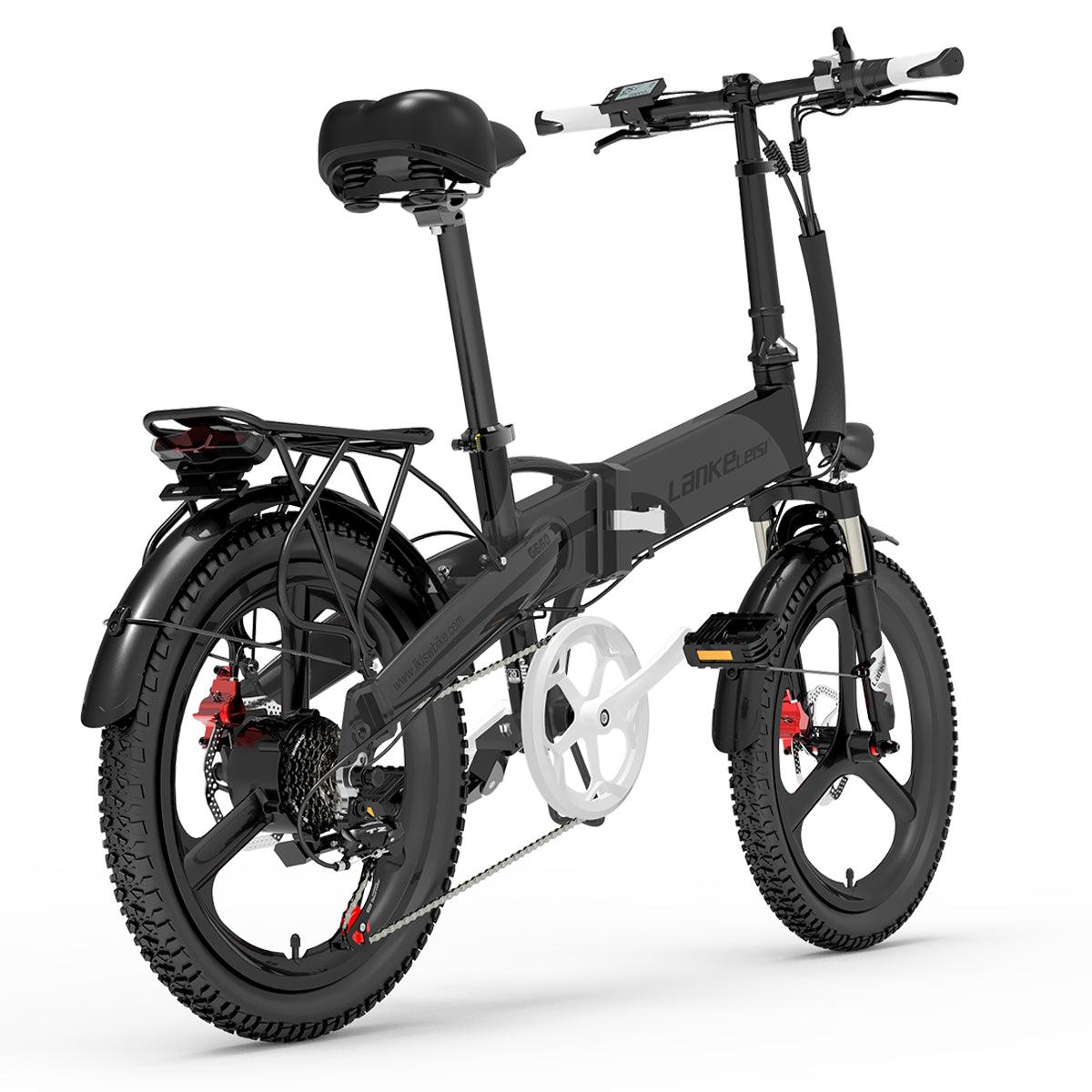

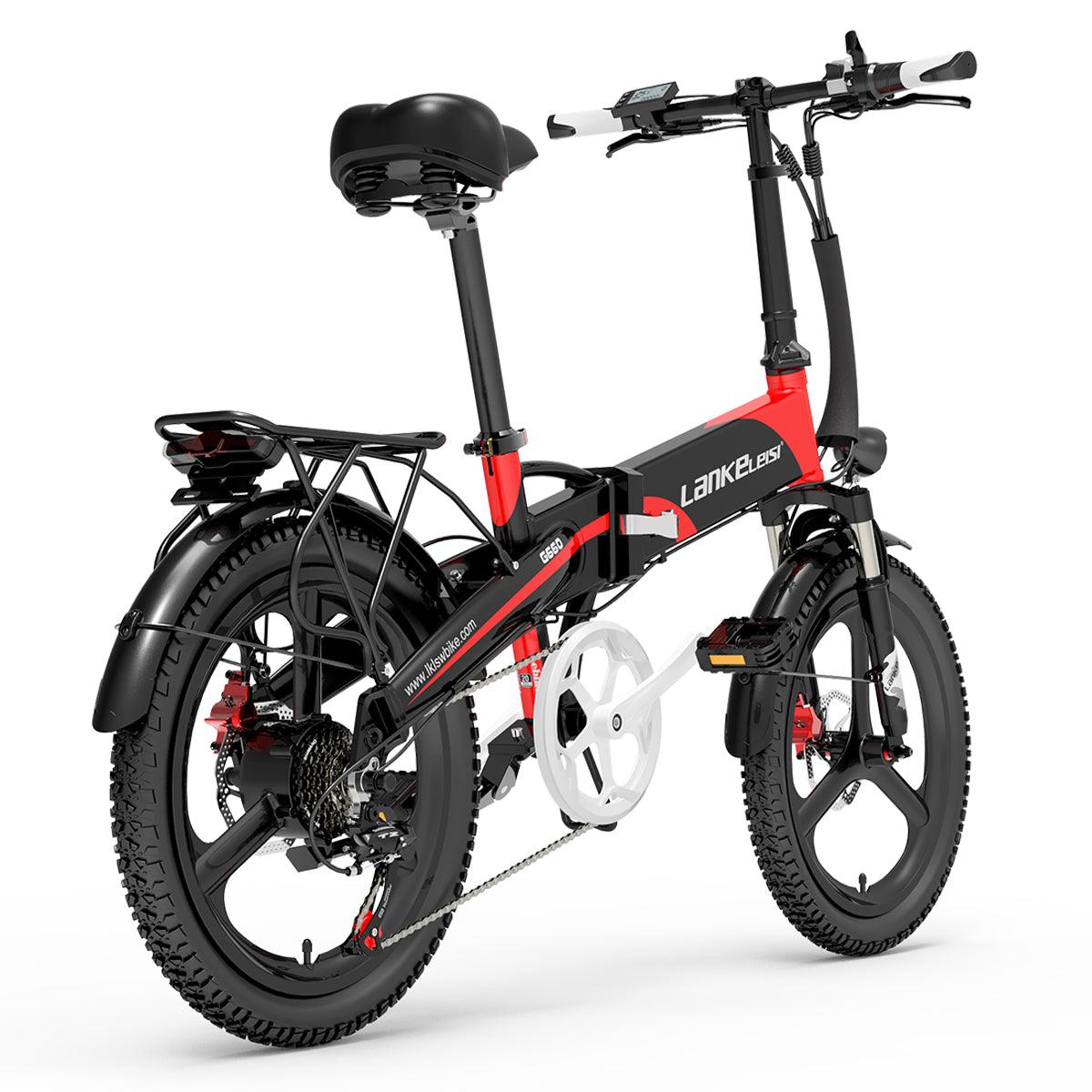

Folding Electric City Bike

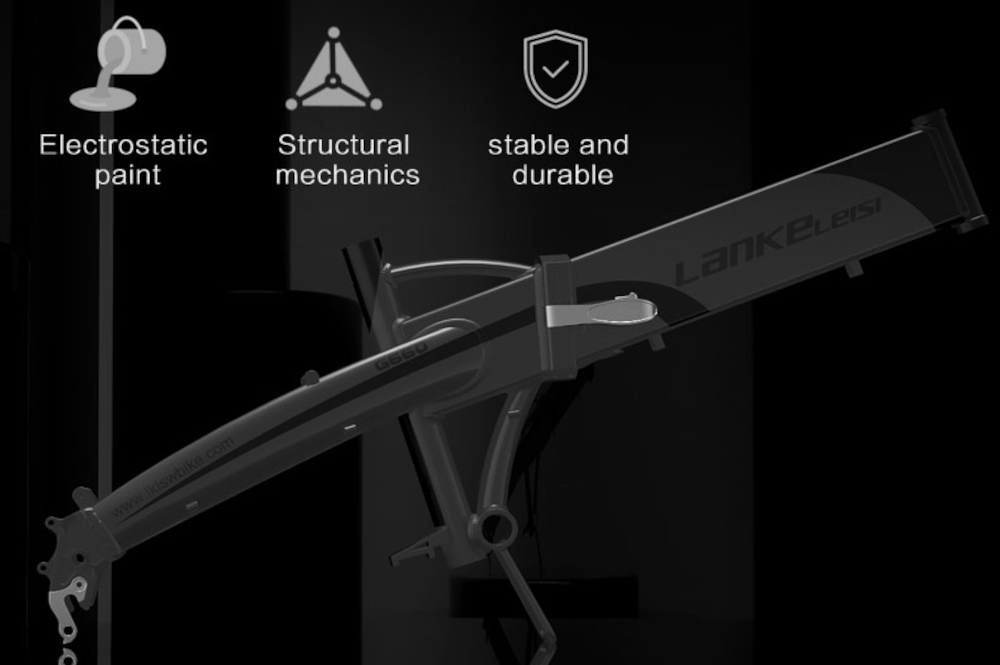

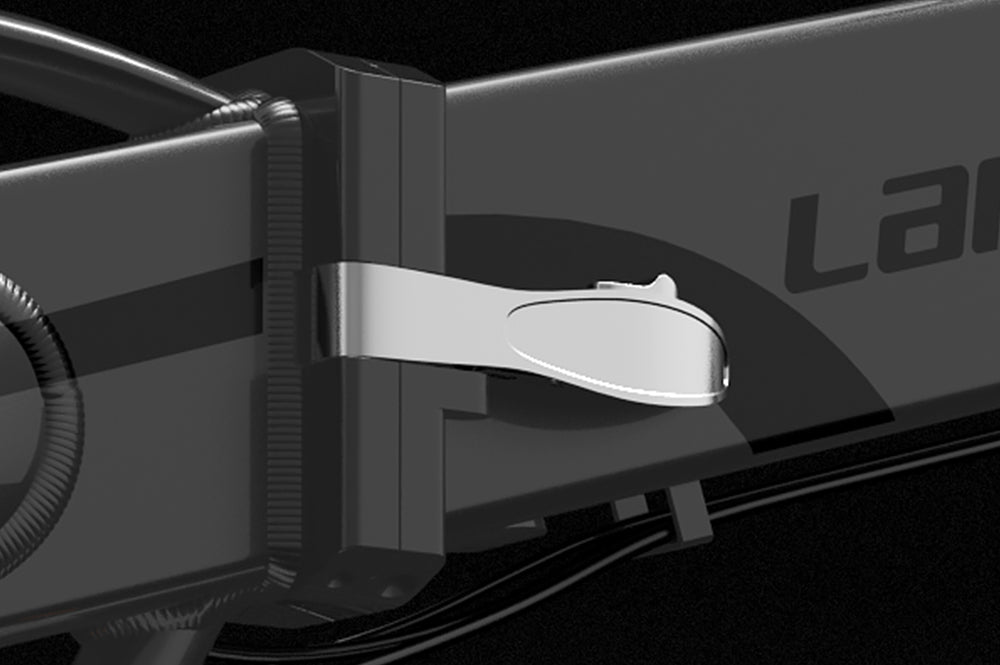

The G660's foldable, clean-looking frame adds to its strengths. Commuters can fold it up and stow it in the trunk of their car or on public transportation, enjoying the G660's unparalleled flexibility.

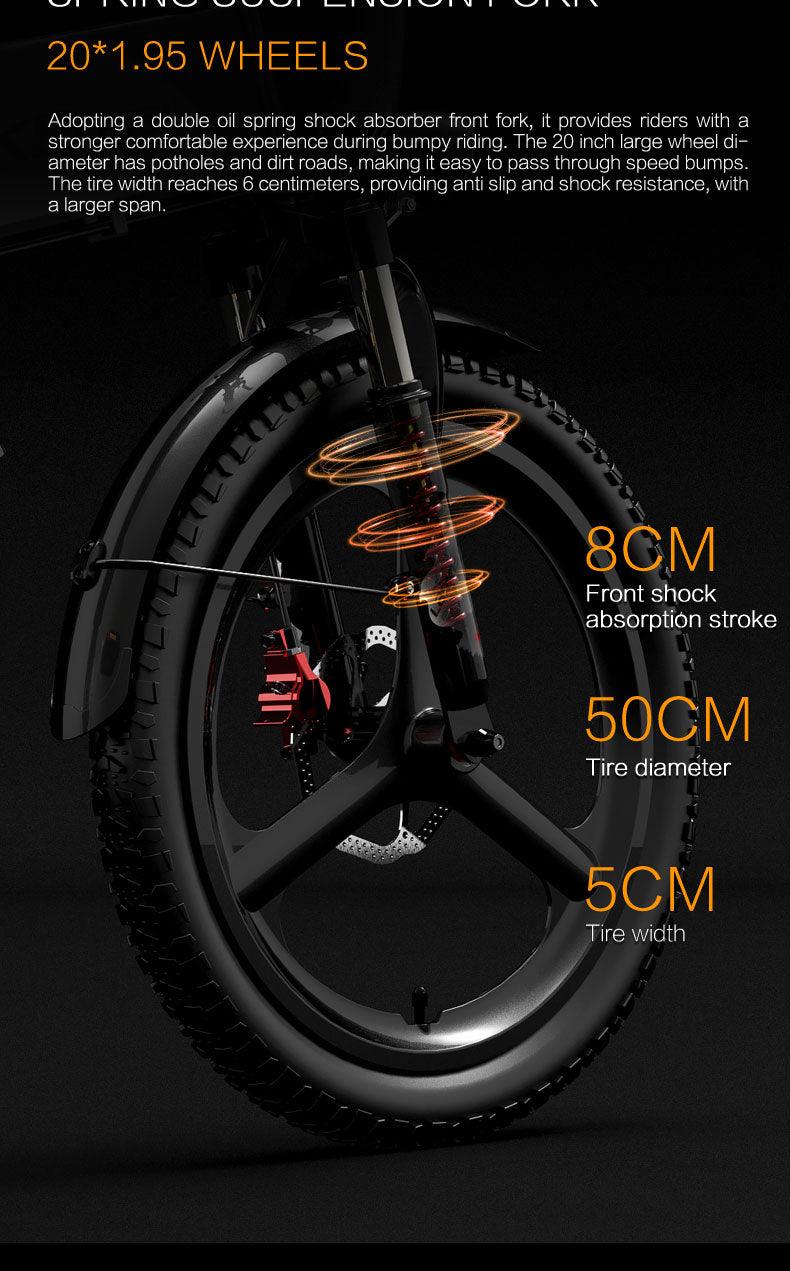

20*1.95 WHEELS

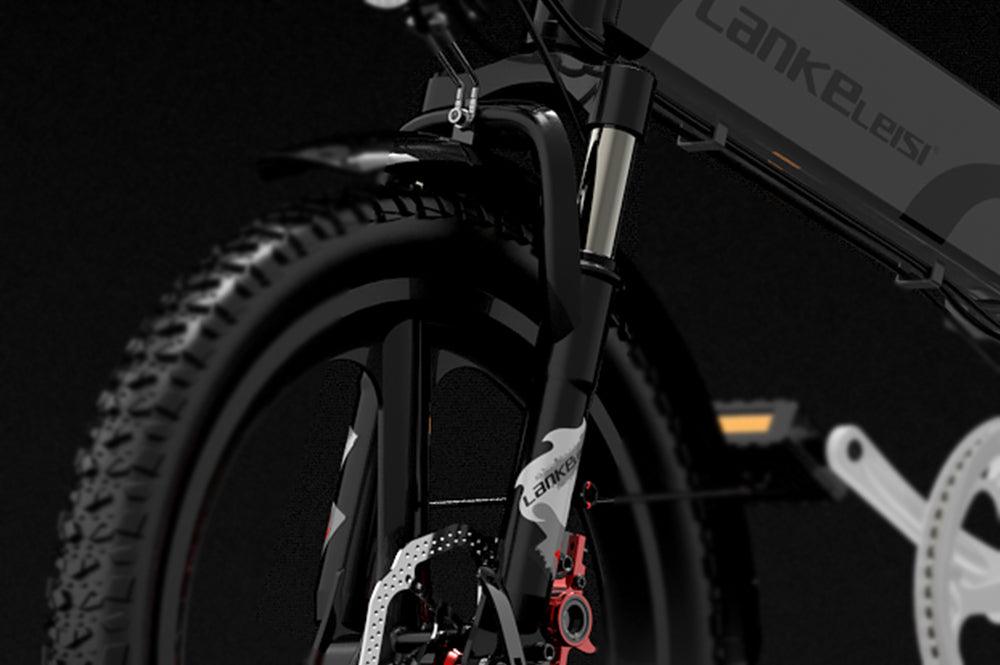

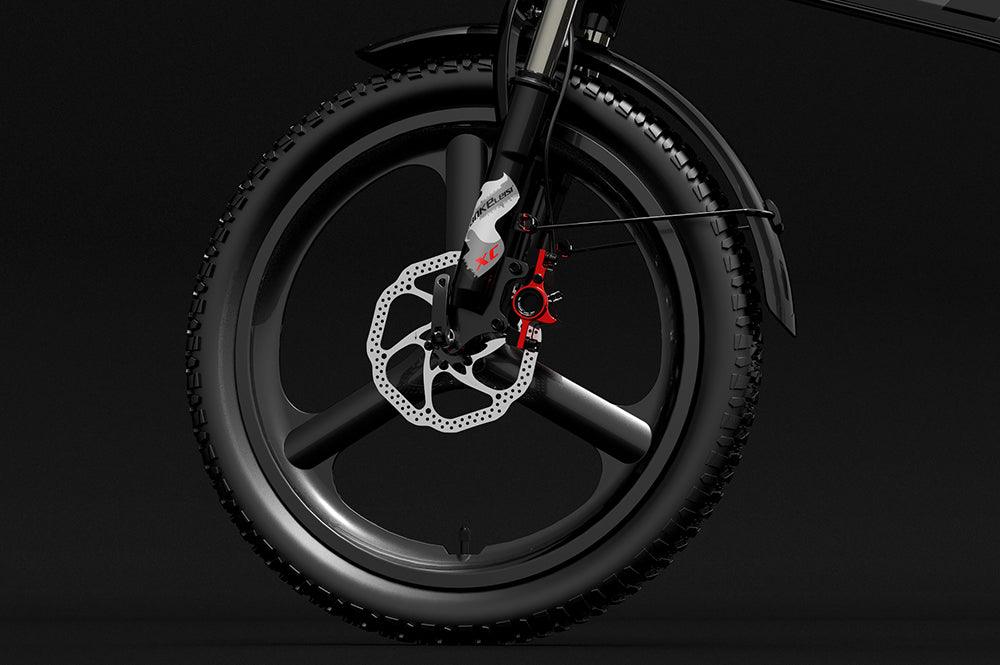

Adopting a double oil spring shock absorber front fork, it provides riders with a stronger comfortable experience during bumpy riding. The 20 inch large wheel diameter has potholes and dirt roads, making it easy to pass through speed bumps.The tire width reaches 6 centimeters, providing anti slip and shock resistance, with a larger span.- Shock Absorber SPRING SUSPENSION FORK
- Tire 20*2.4 WHEELS
